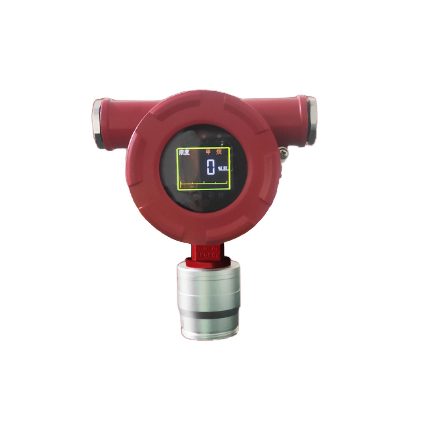

GT-CDI282Ex/IR Industrial and Commercial Point-Type Flammable Gas Detector

  • 1
  • 2

Brand Name : BOEN FIRE

Model Number : GT-CDI282Ex/IR

Certification : ISO9001、CCCF、CNEX、SIL2

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T

Delivery Time : 15-20 days

Detection : Infrared hot-swappable, for methane, 3-100%LEL

Explosion & Protection : Ex d IIB T6 Gb, IP66, cast aluminum shell

Display & Control : 1.8-inch TFT color screen, infrared remote control

Signal Output : 4-20mA, RS485, alarm relay

Power & Consumption : DC24V, <2W, transmission ≤1000m

Environment : -40~70℃, 0-95%RH (no condensation), 86-106kPa

Life & Maintenance : Sensor life 3 years, hot-swappable replacement

Installation : M25×1.5 thread (adapter optional)

Contact Now

GT-CDI282Ex/IR Industrial and Commercial Point-Type Flammable Gas Detector


GT-CDI282Ex/IR Industrial and Commercial Point-Type Flammable Gas Detector


1.Product Overview


This product is an explosion-proof device, suitable for Zone I and Zone II environments where there may be leakage or explosion hazards of flammable or toxic and harmful gases in industries such as petroleum, chemical engineering, gas storage stations, and wine factory production workshops. It is not applicable to Zone 0 or underground coal mine environments. The detector can conduct safe detection and give advance alarms for gas leakage accidents.
The detector features TFT liquid crystal display, infrared remote control, three-wire 4mA-20mA output, RS485 bus communication (Modbus RTU protocol), and passive contact output functions.


2.Product Features


(1) It adopts a 256-color TFT LCD (128*160) display and an infrared remote control function, making it convenient to adjust.

(2) It uses a hot-swappable probe sensor, which is easy to replace in different use sites.
(3) It has a zero-point calibration function, which can avoid measurement errors caused by zero-point drift.
(4) It has a standard RS485 interface based on the Modbus (RTU) protocol.
(5) It can be connected with JB-QB-CH210 combustible gas alarm controllers produced by companies such as PLC and DCS.
(6) It adopts a single-chip microcomputer processing system, with strong stability and anti-interference ability, and low power consumption.


3.Main Technical Data


Item Content
Detection Principle Infrared (Hot-swappable Type)
Sampling Method Natural Diffusion
Detection Range (3~100) %LEL
Resolution 1%LEL
Response Time ≤30s
Measurement Error Full Scale ±3%LEL
Low Alarm Value 25%LEL
High Alarm Value 50%LEL
Applicable Gas Methane
Sensor Life 3 Years
Display Method TFT 1.8-inch LCD Color Screen
Signal Transmission Method Standard RS485 Interface
Alarm Relay Output
4mA~20mA Output
Signal Bus Transmission Distance ≤1000m
Working Voltage DC24V
Power Consumption <2W
Temperature Range -40℃~+70℃
Humidity Range 0~95%RH (No Condensation)
Pressure Range 86kPa~106kPa
Shell Material Cast Aluminum
Overall Weight 1Kg
Mounting Thread M25×1.5 (M to NPT Adapter Optional)
External Dimensions 153×172×96 (mm)
Protection Class IP66
Explosion-proof Mark Ex d IIB T6 Gb/Ex tb IIIC T80℃ Db
Note -
